| Place of Origin: | Original from China |
|---|---|
| Hàng hiệu: | CHEN LIFT |
| Chứng nhận: | CE ISO9001:2008 IPAF member |
| Model Number: | MG900-2 |
| Minimum Order Quantity: | 1 set |
| Giá bán: | có thể đàm phán |
| Packaging Details: | Wrapped in pallets/ wooden case |
| Delivery Time: | 30 days after receipt of deposit |
| Supply Ability: | 100 set/ month |
| Model: | MG900-2 | Lift capacity: | 150Kg |
|---|---|---|---|
| Platform height: | 9m | Platform size: | 1.00*0.70m |
| Working height: | 11m | Charger: | 24V/12A |
| Weight: | 1250Kg | Color: | Customized |
| Làm nổi bật: | mobile aerial work platform,hydraulic aerial work platform |
||

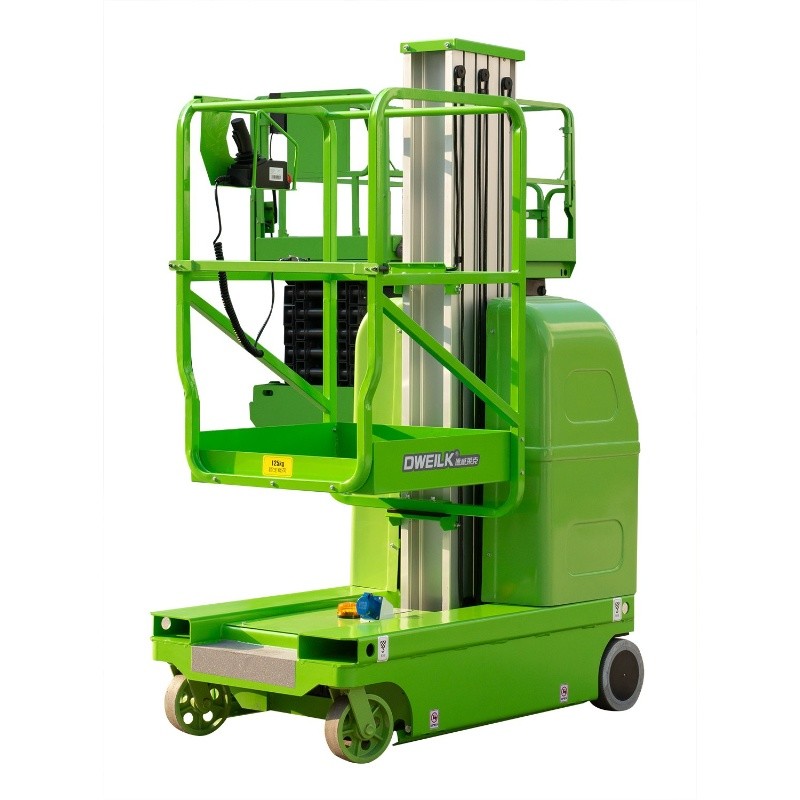

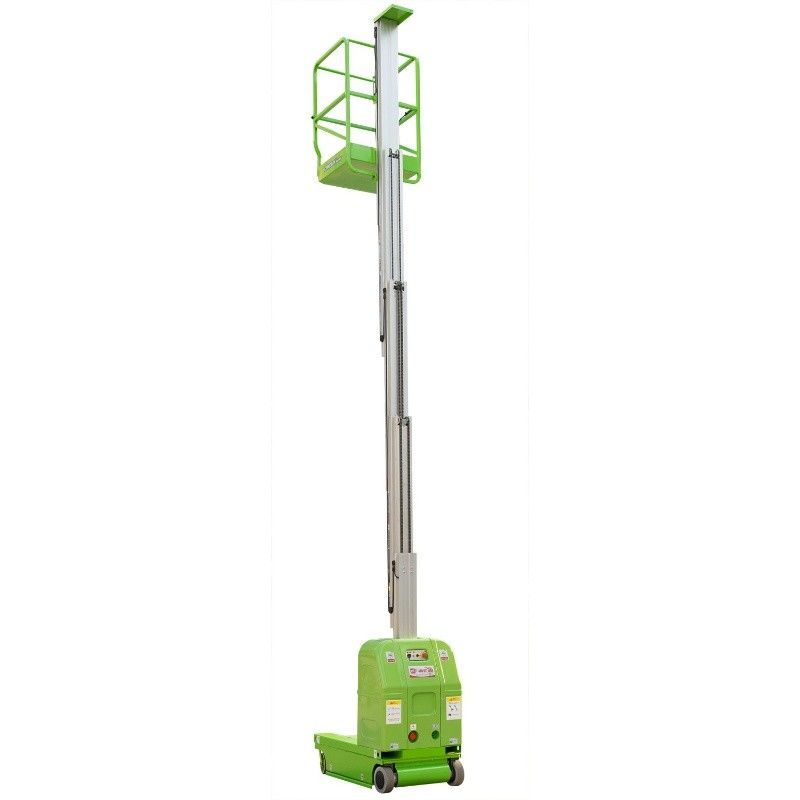

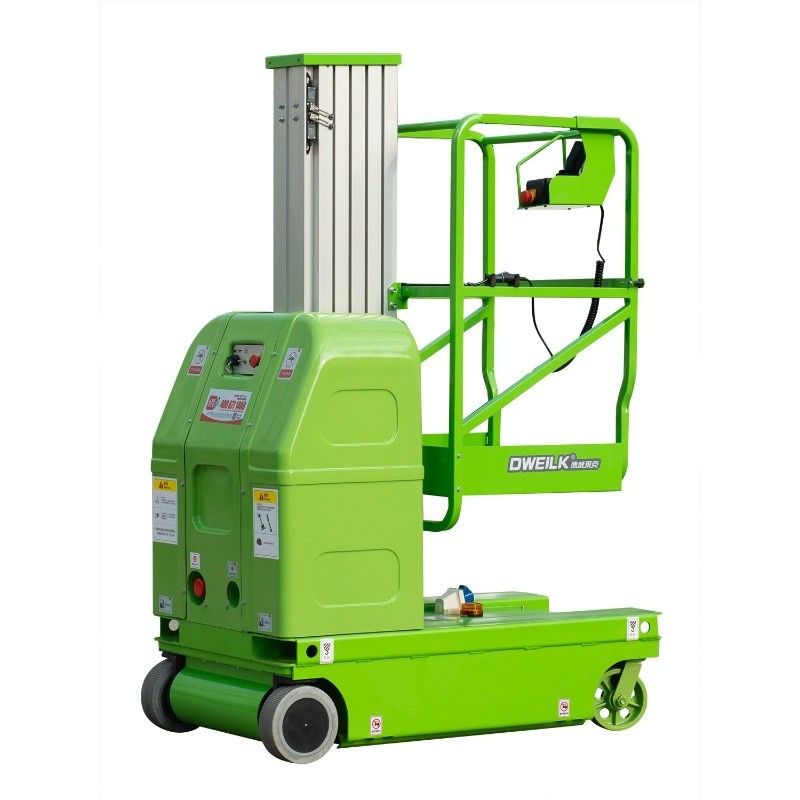

Self Propelled Aerial Work Platform Double Mast Manlift In Red 150Kg Loading Capacity
Machine Parameter:
| Model | MG900-2 |
| Lift capacity | 150Kg |
| Platform height max | 9m |
| Stowed length | 1.5m |
| Stowed width | 1.0m |
| Stowed height | 1.99m |
| Platform size | 1.00*0.70m |
| Ground clearance | 0.05m |
| Wheelbase | 1.28m |
| Grade ability | 25% |
| Maximum working slope | 3° |
| Driving wheel | φ0.25*0.08m |
| Front tire | 8in |
| Driving motor | 2*24V/0.5kw |
| Lifting motor | 24V/2kw |
| Power source | 2ˣ12V/120Ah |
| Charger | 24V/12A |
| Weight | 1250Kg |
Standard Configurations:
Proportional Control
Power Supply
Traceless Tyre
4*2 Driving
Automatic Brake System
Auxiliary Lowering System
Emergency Stop System
Anti-burst System
Tilting Protection System
Buzzer
Horn
Fork Lift Slots
Charging Protection System
Optional Configurations
AC Power to Platform
Platform Working Light
Extension Platform
